MS-201-BK Cartridge to Spin-On Adapter
Installation Instructions:
Step 1

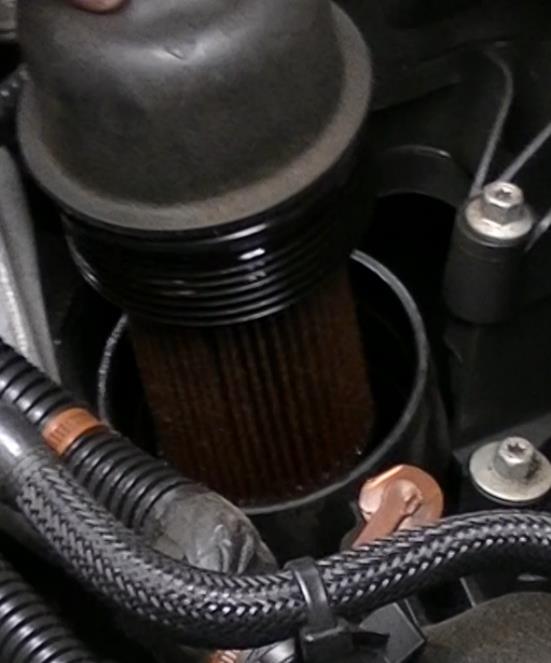

Remove existing Cartridge filter cap and filter.
Step 2
Ensure that the threads on locking cleat are aligned with threads on adapter body prior to install. (as shown)
Step 3

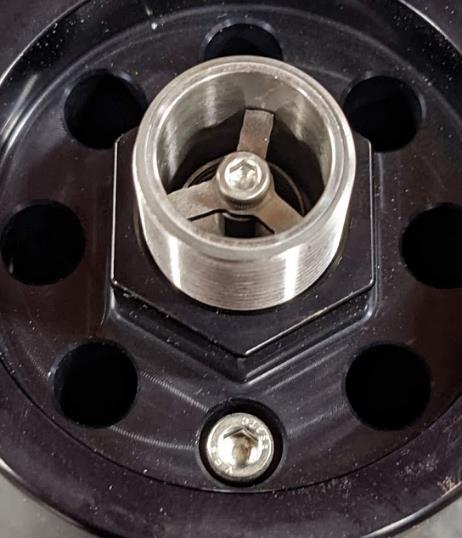

Lubricate the face seal on the docking collar (body and tip O-rings will be installed later). Install the Adapter until it bottoms out, then back it out less than 180 degrees to expose an NPT port to be utilized for the Schrader valve. Note the orientation (the opposite one will be plugged with the included hex plug) Test fit spin-on oil filter for clearance. Remove filter and adapter.
Step 4

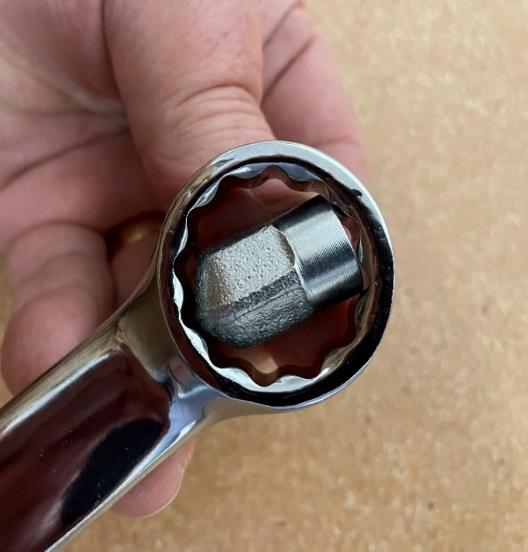

Lubricate the 1/8” hex plug and install in unused port. See note.
Step 5
Install tip and body O-ring seals and lubricate with engine oil. (Verify Face seal is in place)
Step 6

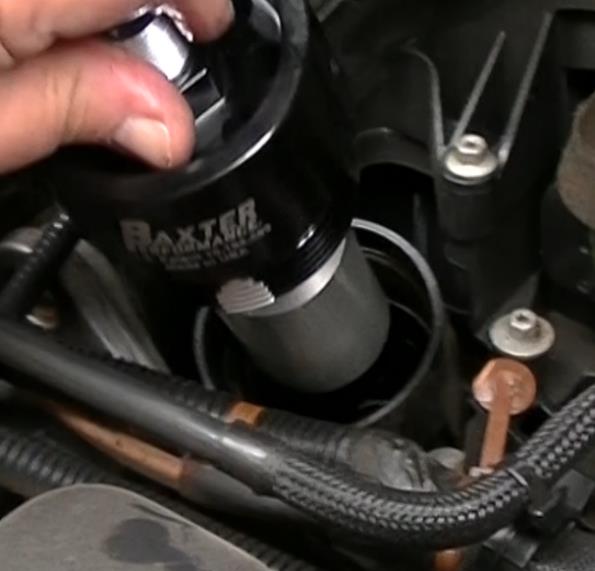

Using 1” deep socket, rotate until fully bottomed out and back out to the previously determined orientation.
Step 7

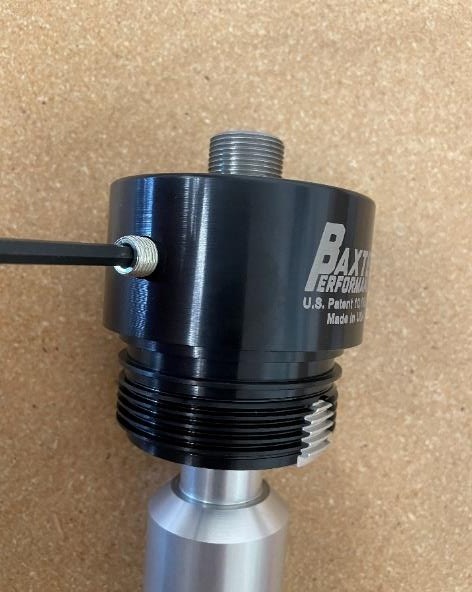

Lock the adapter in place, by tightening the socket head cap screw with a 5/32 hex wrench.
Step 8
Lubricate threads on Schrader valve, and install. (use optional 90-degree fitting if needed for better access or clearance)
Step 9

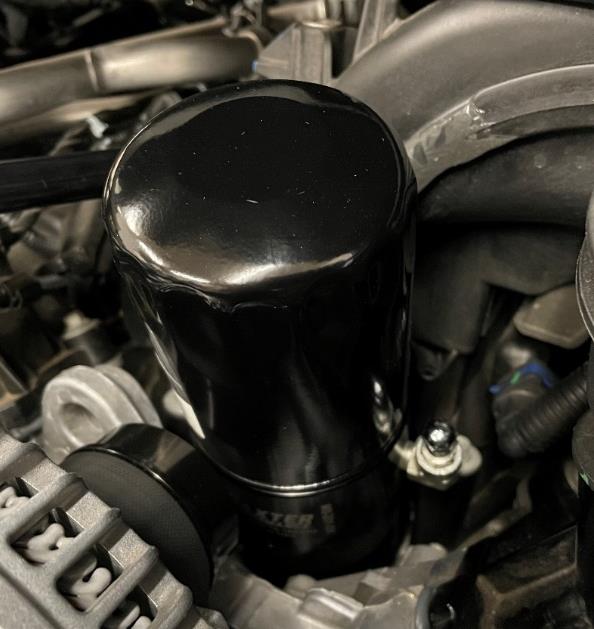

Install oil filter with 22 X 1.5 threads, WIX 57502, Purolator PSL22500 or MOBIL1 M1-212 or equivalent. Make certain to lubricate oil filter gasket prior to installation.
Note: Thread seal tape may be used on hex plug, 90-degree fitting, and Schrader valve. Make certain tape is on threads only and not over end of fitting.
apply minimum 30 PSI to the Schrader valve for at least three seconds. This will evacuate the oil retained in the oil filter and
cooler. Then, remove oil filter and replace.
Baxter Performance is excited to offer the MS-201-BK Cartridge to Spin-On Adapter for Pentastar Engines. This simple and effective component can reduce engine-wear caused by dry starts and help extend the life of your vehicle. Contact us today with any questions, and order yours from Baxter Performance!
